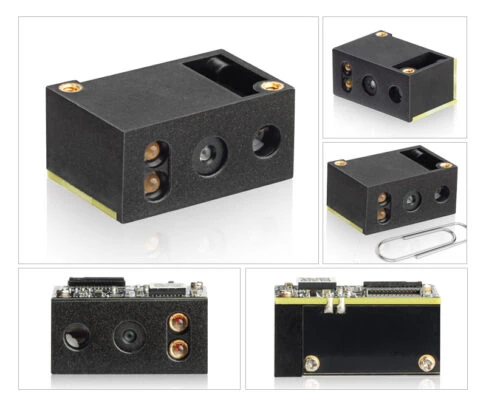

Barcode Scanner: RT206
—Small 2D OEM Barcode Scanner Module For General Use
ConnectionTTL-232 USB EVK kit✹ RS232 EVK kit✹ (✹Optional) | Specification✔️1D&2D barcode (QR, DM, etc) ✔️Decoder board and imager two in one ✔️Automatic reading & Command trigger
|
FeaturesWindows, Linux, Android, Arduino, Raspberry PI Super fast barcode reading from LCD screen and paper Application: POS, Locker, Medical device, Self-service terminal
CertificateCE, FCC, RoHS, REACH, Proposition 65, IEC62471 | |
Click the video to watch it’s excellent performance to read different bar codes from paper and phone screen.
integration
We provide 3D-Drawing, integration Guide which support your easy and quick integration work with your terminals.
Contact our sales people to get the full documents.
Integration Accessories
To facilitate our customer integration, we provide Screws, Flat cables, Connectors, USB/RS232 EVK (We also call it development kit board) and their schematic. But they are all optional, you can tell our sales people do you need them or not when you place order.
Control the barcode scan module by commands
For example, we can control the scanner's read/illumination... by sending commands to the scanner. We provide a detailed introduction to let you know how to do the command control. Ask our people to get full documents.
And we also provide Video presentation to show you how to do the commands programming, click here to see the video.
Setting Codes Programming
To program/ setup the scanner module, you can just simply do it by setting codes from the User manual we provide. Remember to read the "Enter setup" code when you begin to setup. Please ask our sales people for the full detailed user manual.
We also provide video guide to show you how to setup the scanner module by setting codes. Click here to watch the video.
Specifications
| Performance | Image Sensor | 640×480 CMOS |
| IlluminationAiming | Red LED 625±10 nm Red LED 625±10 nm | |
| Symbologies | 2D: PDF417, QR Code (QR1/2, Micro), Data Matrix (ECC200, ECC000, 050, 080, 100, 140), Chinese Sensible Code | |
| 1D: Code 128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, ITF-6, ITF-4, Matrix 2 of 5, Industrial 25, Code 39, Codabar, Code 93, Plessey, MSI-Plessey, GS1-DataBarTM(RSS), (RSS-14, RSS-Limited, RSS-Expand) | ||
| Resolution | ≥5mil (differ from different bar codes) | |
Typical Depth of Field* | EAN-13 50mm-365mm (13mil) | |
| Code 39 40mm-165mm (5mil) | ||
| Data Matrix 35mm-115mm (10mil) | ||
| QR Code 35mm-145mm (15mil) | ||
| PDF 417 45mm-115mm (6.67mil) | ||
| Symbol Contrast | ≥25% | |
| Scan Angle | Roll: 360°, Pitch: ±60°, Skew: ±60° | |
| Field of View | Horizontal 44°, Vertical 33.2° | |
Mechanical /Electrical | Interface | TTL-232, USB (HID-KBW, COM Port Emulation, HID-POS) |
| Rated Power Consumption | 330mW (typical) | |
| Operating Voltage | 3.3 VDC±10% | |
| Current@3.3VDC | Operating 100mA (typical), 168mA (max.) | |
| Standby 8.1mA | ||
| Sleep ≤100uA | ||
| Dimensions | 21.2(W)×14(D)×11.1(H)mm | |
| Weight | 4g | |
| Environmental | Operating Temperature | -20℃ to 60℃ |
| Storage Temperature | -40℃ to 70℃（-40°F to 158°F） | |
| Humidity | 5% to 95% (non-condensing) | |
| Ambient Light | 0~100,000lux | |
| Certifications | FCC Part15 Class B，CE EMC Class B | |
Accessories | EVK | Software development board, equipped with a trigger button, beeper, and RS-232 or USB interfaces(USB-HID or USB-Virtual Com, cable is different ). |
| Cable | USB: Used to connect the EVK to a host device. RS-232: Used to connect the EVK to a host device. | |
| Power Adapter | DC5V power adapter used to provide power for the EVK board |
Not suitable? Check others:
| Models | iN1 | RT218-ER | RT218-SD | RT218-SR | RT214 | RT214B | RT214C | RT214D | RT206 |
|---|---|---|---|---|---|---|---|---|---|
| Read 2D and QR Codes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Read From Paper and Phone Screen | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Read Maxicode & Aztec | Yes | Yes | Yes | Yes | No | No | No | Yes | No |
| Depth of Field | Medium | Far | Near | Medium | Medium | Medium | Medium | Medium | Medium |
| Field of View | Normal | Normal | Normal | Normal | Normal | Normal | Normal | Normal | Normal |
| Aimer | Laser | Laser | Laser | Laser | LED | LED | LED | LED | LED |
| Ultra-small & Compact design | Big | Yes | Yes | Yes | Yes | Normal | Big | Yes-Small | Normal |
| Compatible with Arduino via UART/ TTL-232 Board | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Compatible with Arduino via USB EVK Board | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Compatible with Raspberry Pi Via USB EVK Board | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
