2D OEM Barcode Scanner Module: RT214C
—OEM 2D and QR barcode scanner module. Compatible with old scan modules in dimensions. Can be a TTL interface but can also be a USB or RS232 interface directly without needing an extra kit PCB board.

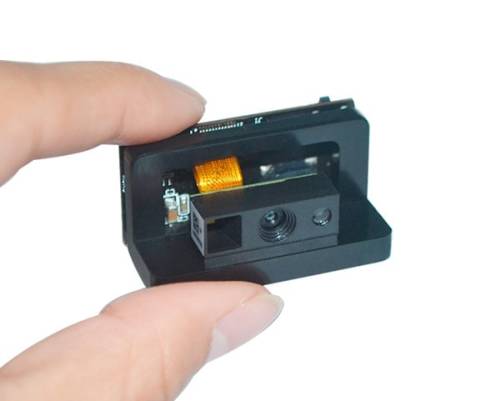

Specification✔️1D&2D barcode (QR, DM, etc) ✔️Automatic reading & Command trigger ✔️Size: 38.8(W)×22.5(D)×19.5(H)
| Interface? TTL-232 ⌨️ USB ? RS232 (✹Optional) |
Features✔️ Compatible with old scan modules in dimensions. ✔️ Can be a TTL interface but can also be a USB or RS232 interface directly without needing an extra kit PCB board. ✔️ Super fast barcode reading from paper&screen ✔️ Windows, Linux, Android, Arduino, Raspberry PI ✔️ Application: Lockers, vending machines, ticketing machines, Courier cabinets, etc.
CertificateCE, FCC, RoHS, IEC62471
| |
OEM 2D and QR barcode scanner module

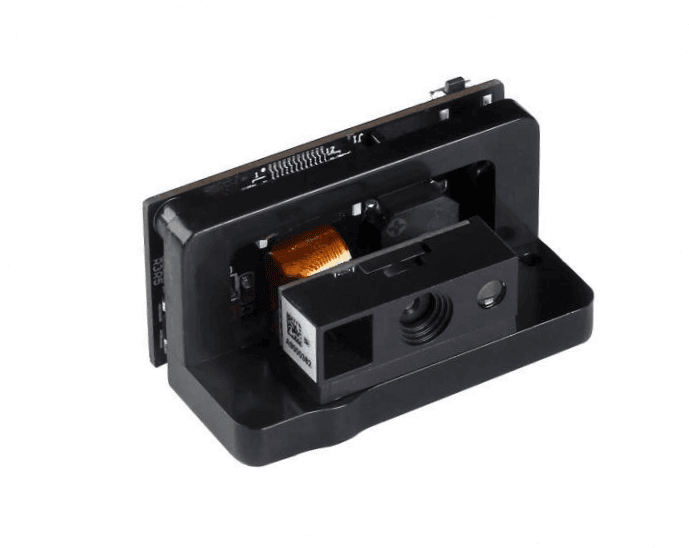

The RT214C is an OEM barcode scanner module launched in 2021. It’s outstanding at its excellent barcode read performance and lower power consumption. Also outstanding in its compatibility with some traditional barcode scanner modules in terms of size and fix screws.
It supports the TTL-232 interface and also supports USB or RS232 output directly.

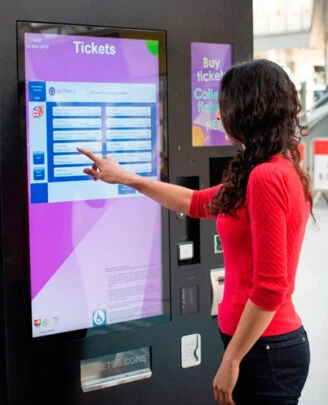

It is suitable for all kinds of terminals: ATMs, hospital self-service terminals, lockers, Self-service vending machines, Coffee vending machines, Self-service ticket machines, Advertising players, Courier cabinets, Ticket gates, etc.
Integration

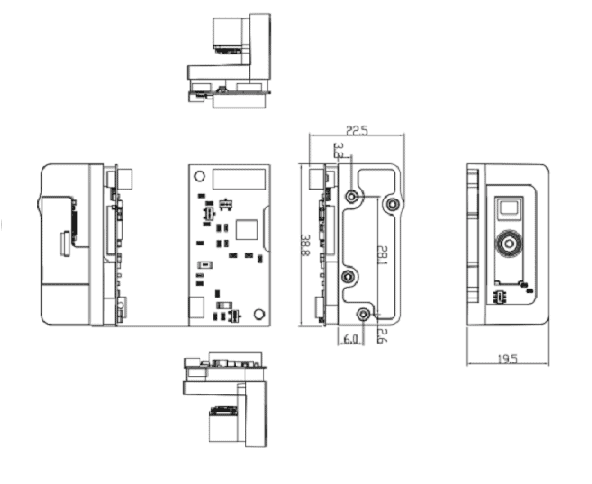

We provide 3D-Drawing, integration Guide which support your easy and quick integration work with your terminals.
Contact our sales people to get the full documents.
Integration Accessories

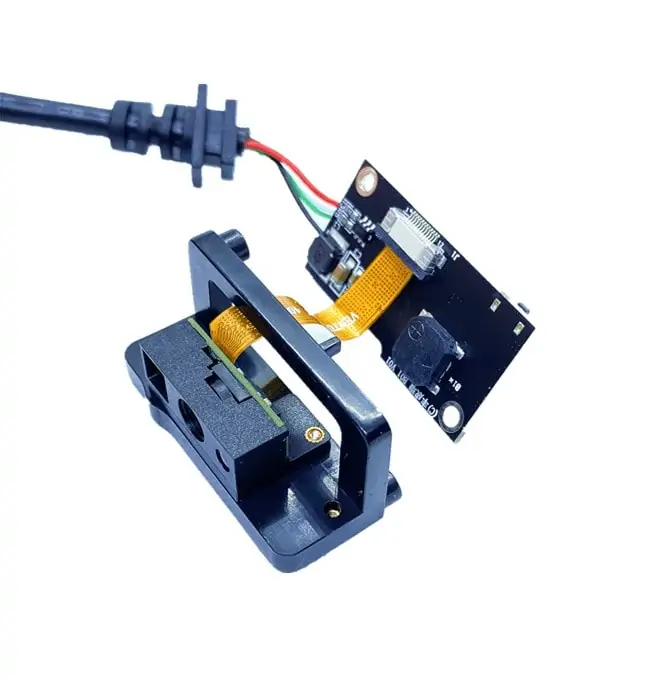

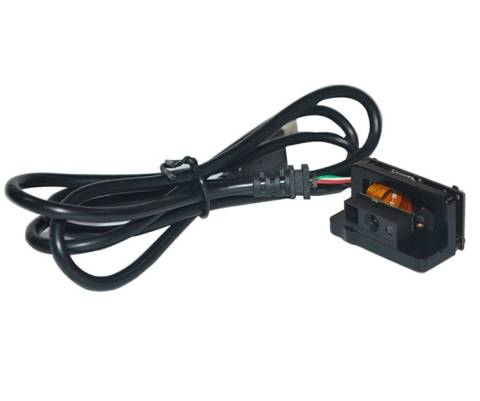

To facilitate our customer integration, we provide Screws, Flat cables, and Connectors. But they are all optional, you can tell our salespeople do you need them or not when you place an order.
Control the barcode scan module by commands
For example, we can control the scanner's read/illumination... by sending commands to the scanner. We provide a detailed introduction to let you know how to do the command control. Ask our people to get full documents.
Setting Codes Programming
To program/ setup the scanner module, you can just simply do it by setting codes from the User manual we provide. Remember to read the "Enter setup" code when you begin to setup. Please ask our salespeople for the full detailed user manual.
Tech Specs
| Performance | ||
| Image Sensor | 640 * 480 CMOS | |
| Illumination | White LED | |
| Aiming | Red LED 625nm | |
| Symbologies | 2D | PDF417, QR Code, Data Matrix, Micro QR |
| 1D | EAN-13, EAN-8, UPC-A, UPC-E, Code128, Code 39, Codabar, UCC/EAN 128, RSS, ITF-14, ITF6, Standard 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Plessey, MSI Plessey, Code 11,Code 93, etc. | |
| Resolution | ≥3mil (differ from different type bar codes) | |
| Typical Depth of Field | EAN-13 | 60-350mm (13mil) |
| Code 39 | 40-150mm (5mil) | |
| PDF417 | 50-125mm (6.7mil) | |
| Data Matrix | 45-120mm (10mil) | |
| QR Code | 30-170mm (15mil) | |
| Scan Mode | Sense mode, Continuous mode, Command trigger | |
| Scan Angle | Roll: 360°, Pitch: ±60°, Skew:±60° | |
| Field of View | Horizontal 42°, Vertical 31.6° | |
| Min. Symbol Contrast | 25% | |
| Mechanical/Electric | ||
| Interface | TTL-232, USB by itself, RS232 customization | |
| Dimensions | 38.8(W)×22.5(D)×19.5(H) mm (max.) | |
| Weight | 9g | |
| Notification | Beep, LED indicator | |
| Operating Voltage | 5VDC + 5% | |
| Current | Operating : 138mA(typical); Idle: 11.8mA | |
| Environmental | ||
| Operating Temperature | -20℃ to 55℃ | |
| Storage Temperature | -40℃ to 70℃ | |
| Humidity | 5% to 95% (non-condensing) | |
| Accessories(optional) | ||
| Development kit board: equipped with a trigger button, beeper, and RS-232 & USB interfaces | USB | USB virtual Com or USB-HID |
| RS-232 | Standard DB9 RS232 interface | |
