2D OEM and USB Barcode Scanner Module: RT214C
Direct USB Output | Native USB Barcode Scanner Module | No Extra Adapter Board Required
Features | |
CertificateCE, FCC, RoHS, IEC62471
| |
OEM 2D and QR barcode scanner module

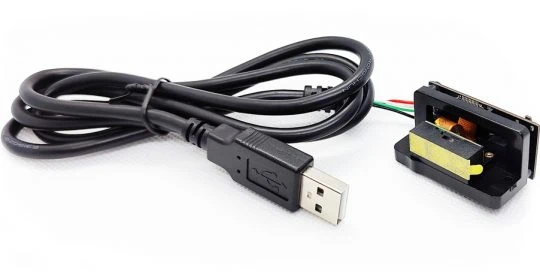

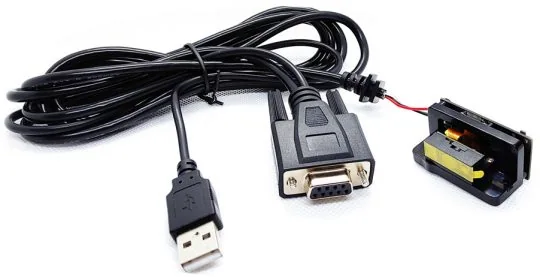

Engineered specifically for system integrators, the RT214C 2D OEM Barcode Scanner Module features native, built-in USB or RS232 interfaces directly on the engine level. You can output USB (HID / Virtual COM) or standard RS232 directly to your host processor without buying or designing an intermediate conversion board.
Combined with its legacy-compatible mechanical form factor, superior reading speed, and ultra-low power consumption, the RT214C provides an ideal, highly cost-effective embedded barcode scanning solution for self-service kiosks, lockers, vending machines, and medical terminals.
It is suitable for all kinds of terminals: ATMs, hospital self-service terminals, lockers, Self-service vending machines, Coffee vending machines, Self-service ticket machines, Advertising players, Courier cabinets, Ticket gates, etc.
Integration Support & Accessories
To speed up your prototyping and full-scale manufacturing, RTscan provides a complete suite of developer resources:
- 3D CAD Models (STEP/IGES) & Dimensional Drawings
- Integration & Hardware Reference Guide
- Command Programming Manual & User Setup Codes
- Optional Integration Accessories: Flat flexible cables (FFC), connectors, and customized mounting screws are available upon request.
Integration Accessories
To facilitate our customer integration, we provide Screws, Flat cables, and Connectors. But they are all optional, you can tell our salespeople do you need them or not when you place an order.
Control the barcode scan module by commands
For example, we can control the scanner's read/illumination... by sending commands to the scanner. We provide a detailed introduction to let you know how to do the command control. Ask our people to get full documents.
Setting Codes Programming
To program/ setup the scanner module, you can just simply do it by setting codes from the User manual we provide. Remember to read the "Enter setup" code when you begin to setup. Please ask our salespeople for the full detailed user manual.
Tech Specs
| Performance | ||
| Image Sensor | 640 * 480 CMOS | |
| Illumination | White LED | |
| Aiming | Red LED 625nm | |
| Symbologies | 2D | PDF417, QR Code, Data Matrix, Micro QR |
| 1D | EAN-13, EAN-8, UPC-A, UPC-E, Code128, Code 39, Codabar, UCC/EAN 128, RSS, ITF-14, ITF6, Standard 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Plessey, MSI Plessey, Code 11,Code 93, etc. | |
| Resolution | ≥3mil (differ from different type bar codes) | |
| Typical Depth of Field | EAN-13 | 60-350mm (13mil) |
| Code 39 | 40-150mm (5mil) | |
| PDF417 | 50-125mm (6.7mil) | |
| Data Matrix | 45-120mm (10mil) | |
| QR Code | 30-170mm (15mil) | |
| Scan Mode | Sense mode, Continuous mode, Command trigger | |
| Scan Angle | Roll: 360°, Pitch: ±60°, Skew:±60° | |
| Field of View | Horizontal 42°, Vertical 31.6° | |
| Min. Symbol Contrast | 25% | |
| Mechanical/Electric | ||
| Interface | Default: USB, RS232 optional | |
| Dimensions | 38.8(W)×22.5(D)×19.5(H) mm (max.) | |
| Weight | 9g | |
| Notification | Beep, LED indicator | |
| Operating Voltage | 5VDC + 5% | |
| Current | Operating : 138mA(typical); Idle: 11.8mA | |
| Environmental | ||
| Operating Temperature | -20℃ to 55℃ | |
| Storage Temperature | -40℃ to 70℃ | |
| Humidity | 5% to 95% (non-condensing) | |
| Accessories(optional) | ||
| Development kit board: equipped with a trigger button, beeper, and RS-232 & USB interfaces | USB | USB virtual Com or USB-HID |
| RS-232 | Standard DB9 RS232 interface | |
Ask A Sample To Test Now!
